Project #014
Pivoting window in birch wood + Palruf
The goal with this project was to create lightweight pivoting window for easy movement. It also had to match the doors we did in project 008 since both are located in the same room. The use of a rigid corrugated PVC panel "Palruf" (opaque white) seemed to us an original solution, appropriate and economical.
Dimensions: 16" X 42 5/8.

We used the router and the table saw to create the grooves in the wood needed to match the shape of the PVC panel. The pieces were screwed to eventually be able to change the PVC panel in case of breakage.

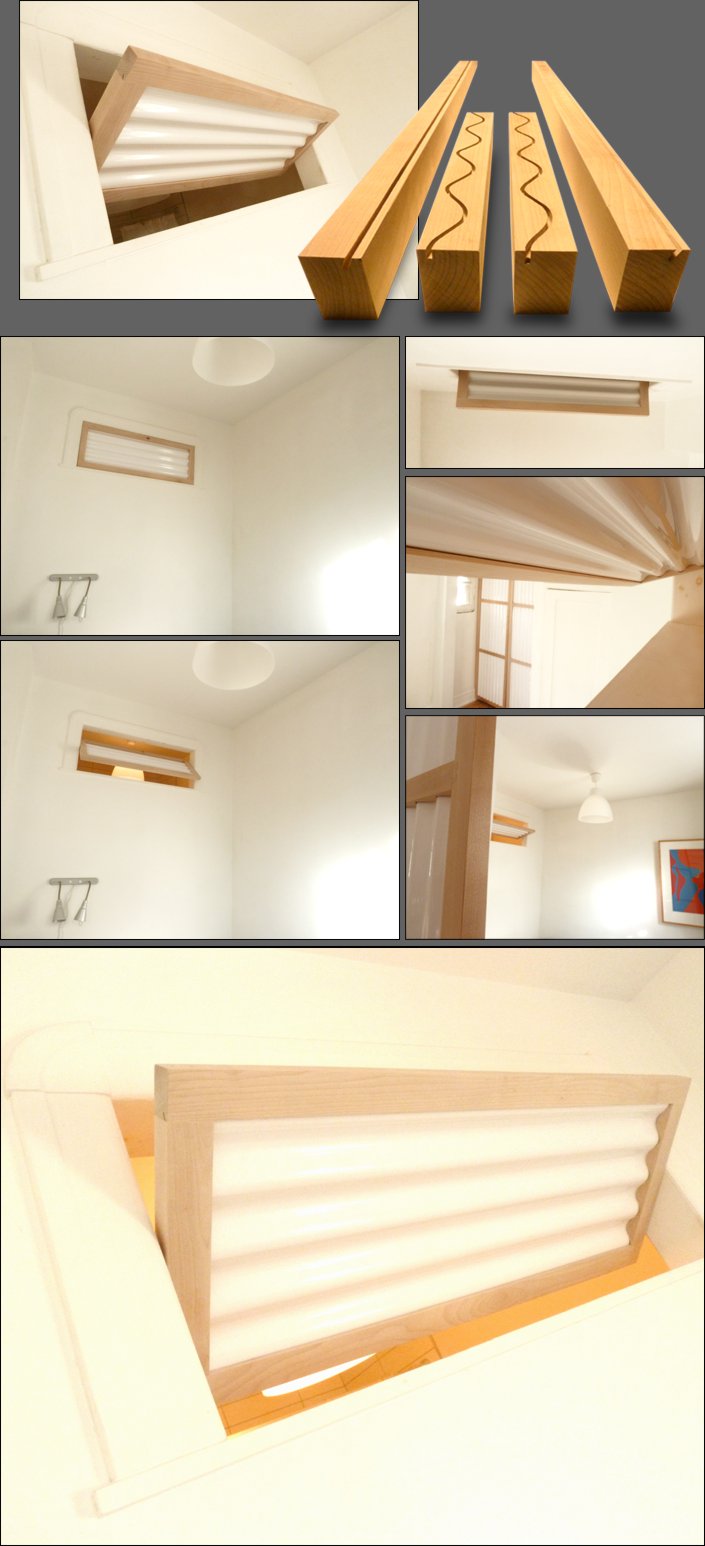

Pivoting window in birch wood and Palruf
